Tesla Model Y · Auckland

Model Y service, suspension and alignment

The Y shares its front end with the Model 3, so it fails in the same places — but it's a taller, heavier car, and it gets there sooner. If yours has started creaking, clicking when you turn, or chewing the inside edge of its front tyres, that's the pattern.

Book now Call 09 579 6083 Text us

Bring it in and we'll tell you what we find.

Why the Y is different

Same components, shorter life

The Model Y is heavier than the Model 3 and carries that weight higher. The suspension components are closely related, so the failures are the same ones — bushes, ball joints, links — but the loads through them are greater. In practice we see the same wear arrive earlier on a Y, and alignment drift out of spec faster once a bush starts moving.

What you're hearing

Model Y noises, and what usually causes them

Five components account for most of it. The noise, and when you hear it, narrows things down — though nothing beats putting the car on a hoist and loading the joints by hand.

Creaking or squeaking Front upper control arms and ball joints Heard while steering, or crawling over bumps at low speed. The most common cause of a creaking Y, and the first thing we check.
Knocking or clicking Front lateral and lower suspension links Worn ball joints and bushes in the lower links. Clicking specifically when turning usually points here, and the Y gets there earlier than a 3.
Knocking, and wandering geometry Compliance arm bushes The bush lets the wheel shift under load, so you get a knock and an alignment that will not stay in spec. On a heavier car the geometry moves further.
Light knocking or rattling Sway-bar links and bushes A rattlier, less solid noise over uneven surfaces. Inexpensive to put right once identified.
Knocking over bumps Dampers and top mounts Noise from the top of the strut. Worth ruling out before condemning the arms, since the symptom overlaps.

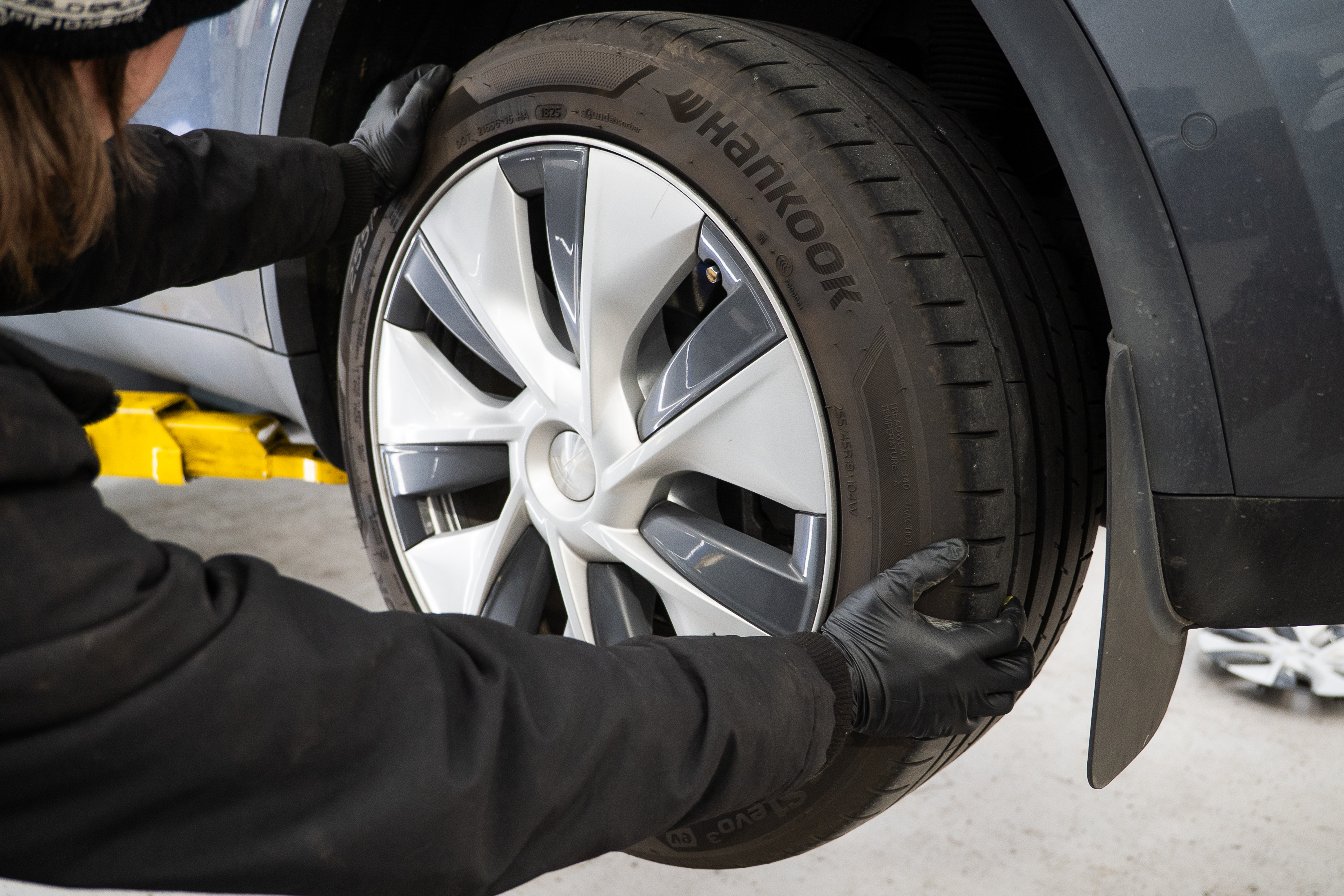

Tyres and alignment

Why Model Y tyres wear on the inside

Inside-edge wear is geometry, not tyres. Camber and toe drift out of spec, and the extra weight of a Y makes the consequences show up faster. Worn bushes and links let the wheel move further still, so the drift accelerates once it starts.

This is why a Model Y wheel alignment is worth doing on its own schedule rather than only when you buy tyres. Fit a new set without correcting the geometry and you'll wear them the same way — an expensive lesson on a car with tyres this size.

We fit EV-rated tyres and align in-house, so it's one visit rather than two.

Everything else your Model Y needs

All of it under one roof in Penrose, with genuine Tesla or quality aftermarket parts — your choice.

Tesla WOF / COF WOF while you wait, and COF A for working Teslas. Read more → Annual service Scheduled maintenance to Tesla intervals. Read more → Tyres & alignment EV-rated tyres, fitted and aligned in-house. Read more → Brakes Pads, discs and the service regen braking hides. Read more → 12V & HV battery Twelve-volt replacement and HV health checks. Read more → Air conditioning Regas, leak testing and cabin filters. Read more → Breakdown insurance Autosure cover for out-of-warranty Teslas. Read more → Paint protection Dura-Seal, applied while the car is in. Read more →

Model Y questions we get asked

Why does my Model Y creak or click when turning? Most often the front upper control arms and their ball joints, or the lower links. Clicking that appears as you turn the wheel tends to point at the links rather than the arms. Both are common on the Y and both are straightforward once the car is on a hoist.
Does the Model Y wear suspension faster than the Model 3? That is what we see. The components are closely related but the Y is heavier and carries the weight higher, so the same bushes and joints take more load. Expect the same failures, arriving sooner.
Why are my Model Y tyres wearing on the inside edge? Camber and toe out of spec. The extra weight makes it show up faster, and worn bushes let the geometry drift further. Correcting the alignment is what stops it — new tyres alone will wear the same way.
How often should a Model Y have its alignment checked? More often than most people do. Worth checking whenever you notice uneven wear, after any kerb strike, and when you buy tyres. If you are already hearing suspension noise, have both looked at together.
What does it cost to find out what the noise is? Nothing. Bring it in, we put it on the hoist and tell you what we find. Any work is quoted before it starts.
★★★★★
